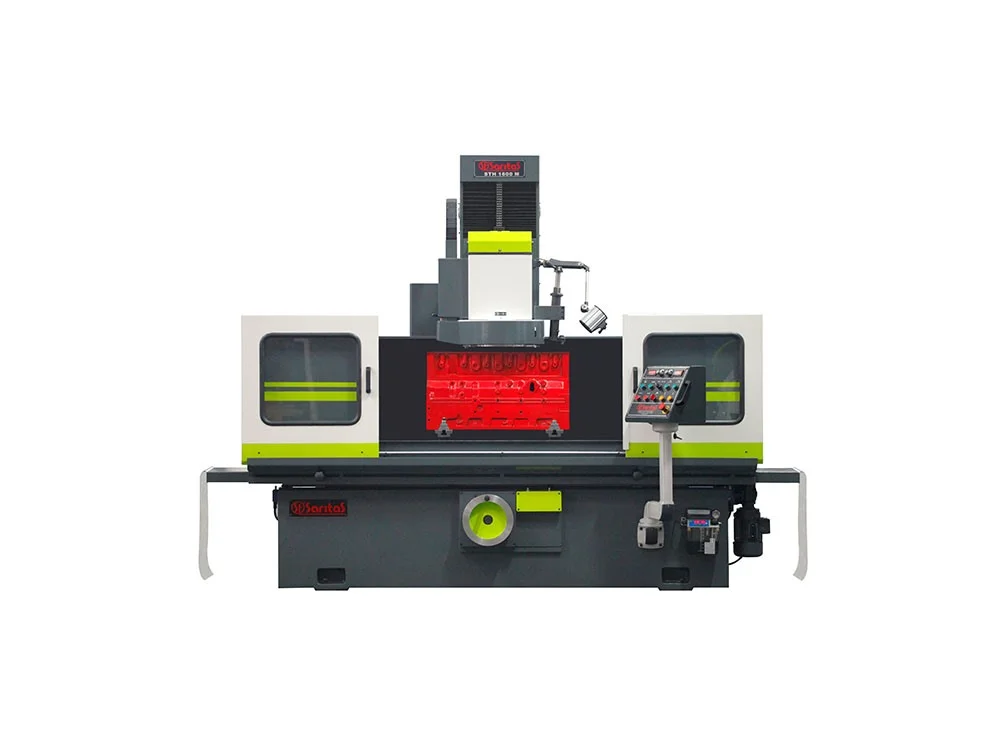

| TECHNICAL SPECIFICATIONS | STH 1600M |
|---|
| Maximum table stroke | 1800 mm |
| Table surface | 1600×350 mm |
| Surface to be ground | 1960×500 mm |
| Minimum distance from wheel to table | 0 mm |
| Maximum distance from wheel to table | 800 mm |
| Segmental wheel diameter | 400 mm |
| Distance between column and wheel center | 410 mm |
| Table traverse speed variable | 0/1600 mm/1ʹ |
| Wheel rotation speeds variable | 150/1400 rpm |
| Wheel head motor power | 5,5 kw |
| Wheel head rapid speed motor power | 0,55 kw |
| Table movement motor power | 0,75 kw |
| Coolant unit motor power | 0,09 kw |
| CODE | STANDARD EQUIPMENTS | ADET / QUANTITY |
|---|
| STD 243 | Tool holder complete with tool | 1 |
| STD 244 | Pair of parallel supports | 2 |
| STD 245 | Clamping plate | 4 |
| STD 246 | Grinding wheel (100x65x58x25 mm) | 10 |
| STD 247 | Segmental wheel Ø 400 mm | 1 |
| STD 248 | Grinding wheel dresser | 1 |
| STD 249 | Grinding wheel extractor | 1 |
| STD 250 | Grinding wheel balancing shaft | 1 |
| STD 251 | Automatic device for machine stop after cutting | 1 |
| STD 252 | Surface straightness checking device | 1 |
| STD 253 | Universal setting up fixture for “V” blocks (Single spindle) | 1 |
| STD 254 | Coolant system | 1 |
| STD 255 | Operating manual | 1 |
| CODE | OPTIONAL EQUIPMENTS |
|---|
| SR 0120 | Universal setting-up fixture for “V” blocks complete with 30°-45° reference square | — |
| SR 0121 | Motor drive rotation table (Ø 320 mm) | — |
| SR 0122 | Universal clamping support for “V” heads | — |
| SR 0123 | Static balancing stand for grinding wheel | — |
| SR 0124 | Grinding wheel (100x65x58x25) | — |
| DIMENSIONS |
|---|
| Length | 3150 mm |
| Height | 2360 mm |
| Width | 1700 mm |
| DIMENSIONS WITH PACKING |
|---|
| Length | 3350 mm |
| Height | 2580 mm |
| Width | 1820 mm |
| WEIGHTS |
|---|
| Without packing | 3400 kg |
| With packing | 3650 kg |
